Reticulum MeshChatX

A Reticulum MeshChat fork from the future.

This project is separate from the original Reticulum MeshChat project, and is not affiliated with the original project.

Warning

Backup your reticulum-meshchat folder before using! MeshChatX will attempt to auto-migrate whatever it can from the old database without breaking things, but it is best to keep backups.

Goal

To provide everything you need for Reticulum, LXMF, and LXST in one beautiful and feature-rich application.

• Desktop app
• Self-host on your server easily with or without containers
• Mobile app (one can dream)

Quick Start (Docker - Recommended)

The easiest way to get MeshChatX running is using Docker. Our official image is multi-arch and supports linux/amd64 and linux/arm64 (Raspberry Pi, etc.).

# Pull and run the latest image
docker pull git.quad4.io/rns-things/meshchatx:latest

# Run MeshChatX in a Docker container
docker run -d \
  --name=meshchatx \
  -p 8000:8000 \
  -v $PWD/storage:/app/storage \
  -v $PWD/public:/app/public \
  # --network=host \  # Uncomment for autointerface support
  git.quad4.io/rns-things/meshchatx:latest

# Or use Docker Compose for an even easier setup
docker compose up -d

Check releases for pre-built binaries (AppImage, DEB, EXE) if you prefer standalone apps.

Major Features

• Full LXST Support: Custom voicemail, phonebook, contact sharing, and ringtone support.
• Multi-Identity: Switch between multiple Reticulum identities seamlessly.
• Modern UI/UX: A completely redesigned, intuitive interface.
• Integrated Maps: OpenLayers with MBTiles support for offline maps.
• Security: Built-in authentication, automatic HTTPS, and CORS protection.
• Offline Docs: Access Reticulum documentation without an internet connection.
• Powerful Tools: Includes RNStatus, RNProbe, RNCP, Micron Editor, Paper Message Generator and a Translator.
• Page Archiving: Built-in crawler and browser for archived pages.
• Blocklist: Block LXMF users, Telephony, and NomadNet Nodes.
• i18n: Support for English, German, and Russian.

Screenshots

Telephony & Calling

Phone

Active Call

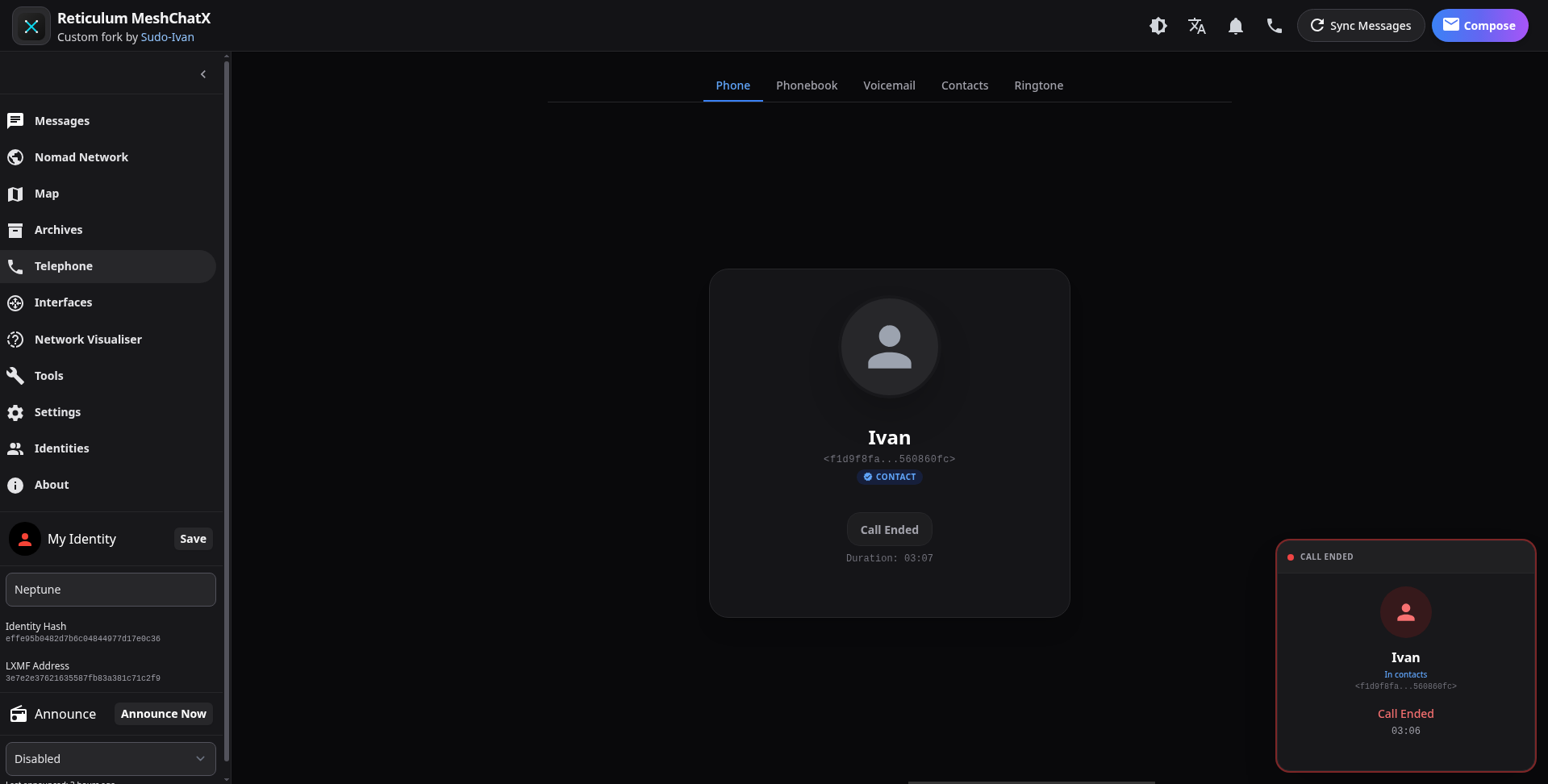

Call Ended

Voicemail

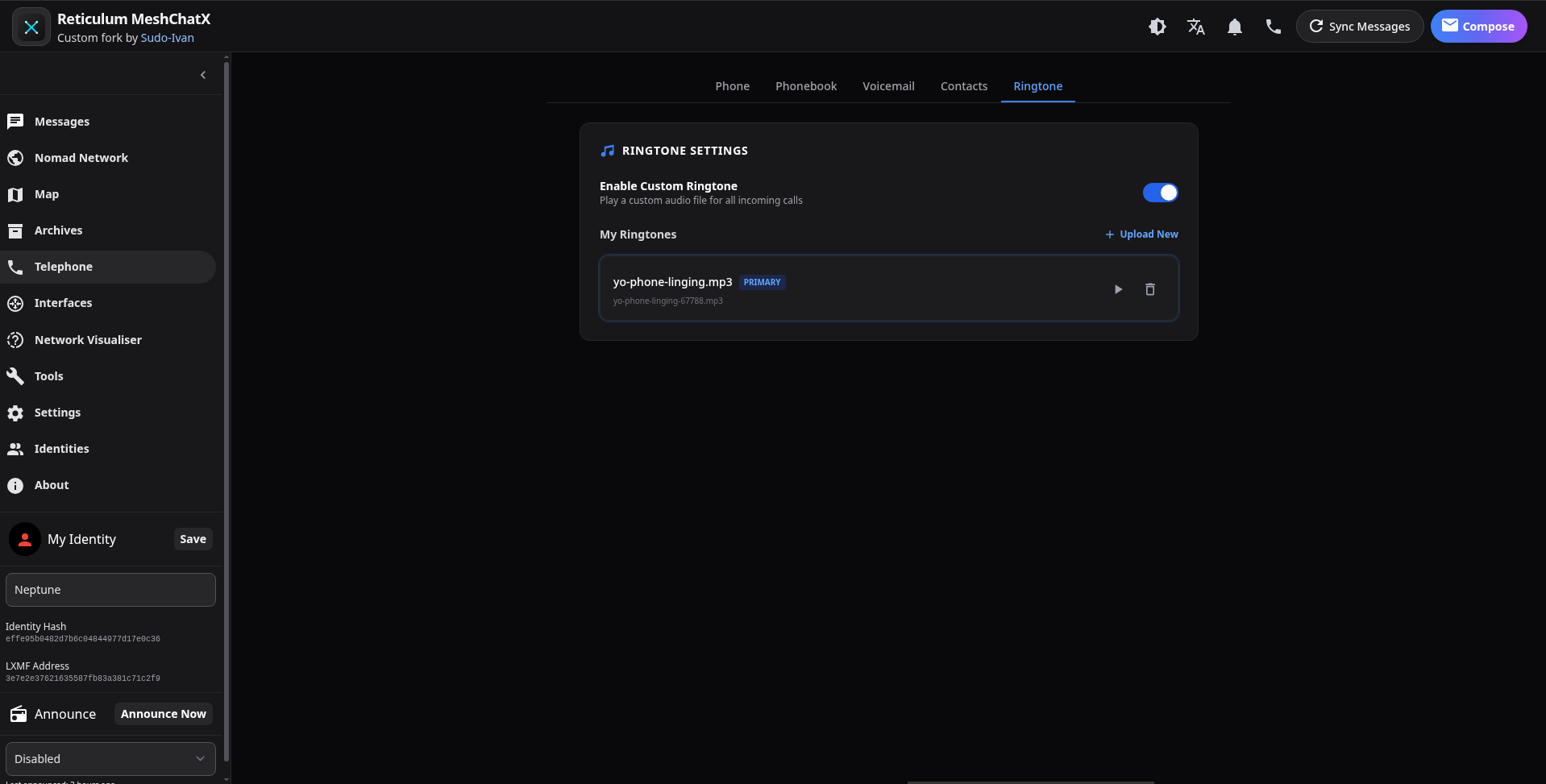

Ringtone Settings

Networking & Visualization

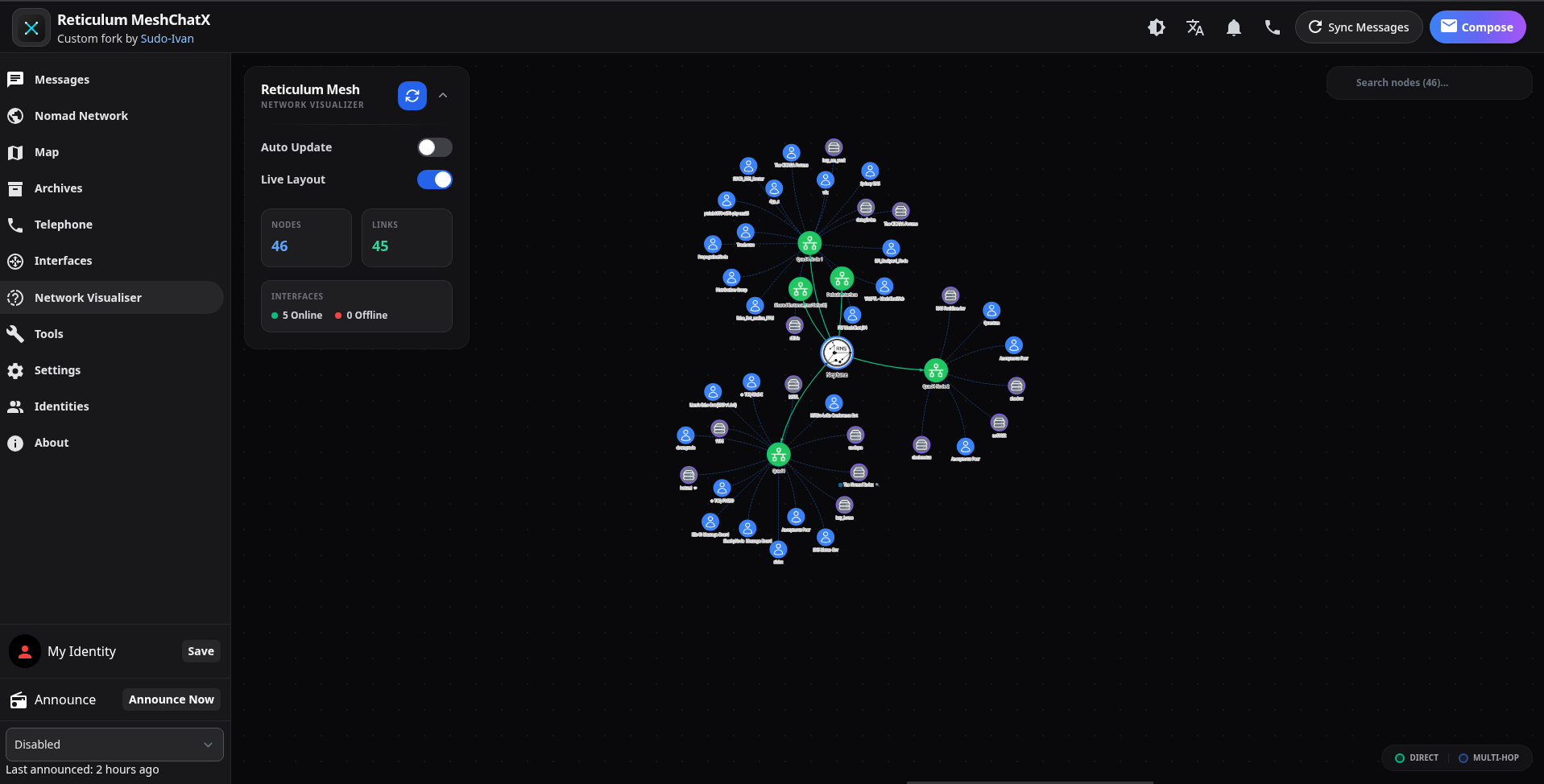

Network Visualiser

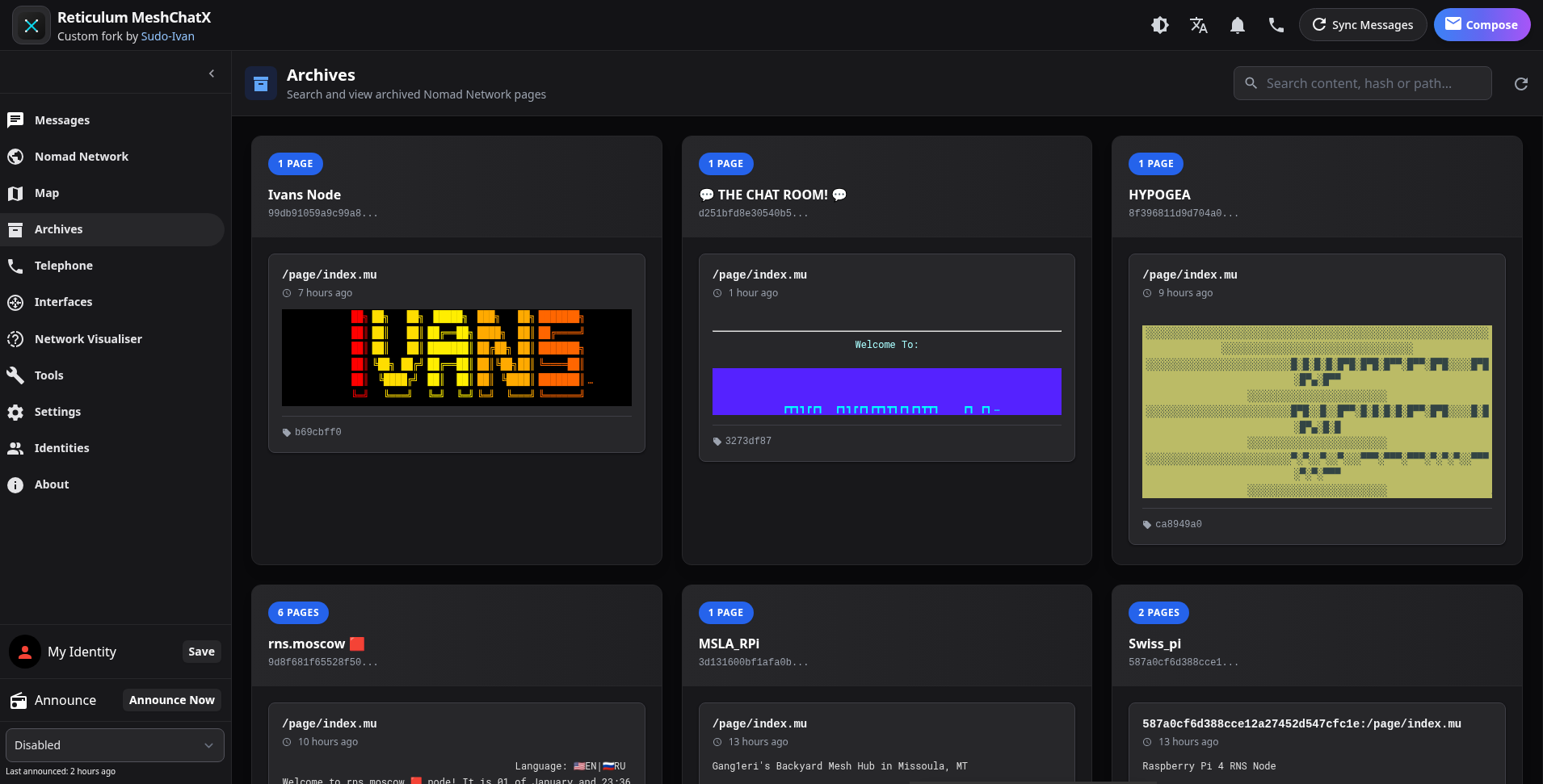

Page Archives

Archives Browser

Viewing Archived Page

Tools & Identities

Tools

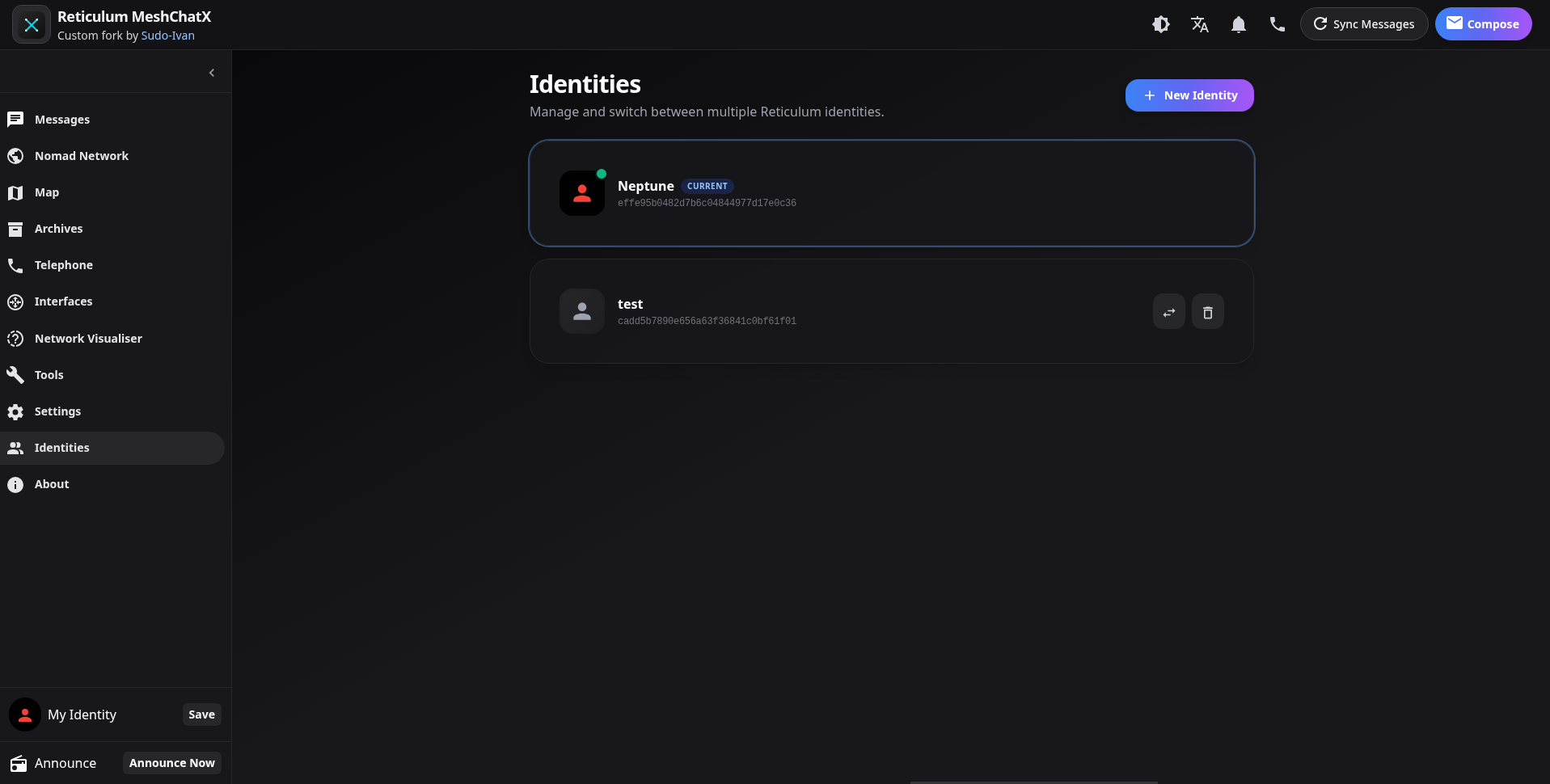

Identity Management

Pipx / Global Installation

If you prefer to install MeshChatX globally using pipx, pip or uv, you can do so directly from the repository. However, you must specify the path to your built frontend files using the --public-dir flag or MESHCHAT_PUBLIC_DIR environment variable, as the static files are not bundled with the source code. The release .whl packages include the built frontend files and also there is a seperate frontend zip to grab and use.

1. Install MeshChatX:

   pipx install git+https://git.quad4.io/RNS-Things/MeshChatX


2. Run with Frontend Path:

   # Replace /path/to/MeshChatX/meshchatx/public with your actual path
   meshchat --public-dir /path/to/MeshChatX/meshchatx/public


Manual Installation (From Source)

If you want to run MeshChatX from the source code locally:

1. Clone the repository:

   git clone https://git.quad4.io/RNS-Things/MeshChatX
   cd MeshChatX


2. Build the Frontend: Requires Node.js and pnpm.

   corepack enable
   pnpm install
   pnpm run build-frontend


3. Install & Run Backend: Requires Python 3.10+ and Poetry.

   pip install poetry
   poetry install
   poetry run meshchat --headless --host 127.0.0.1


Configuration

MeshChatX can be configured via command-line arguments or environment variables.

Argument	Environment Variable	Default	Description
--host	MESHCHAT_HOST	127.0.0.1	Web server address
--port	MESHCHAT_PORT	8000	Web server port
--no-https	MESHCHAT_NO_HTTPS	false	Disable HTTPS
--headless	MESHCHAT_HEADLESS	false	Don't launch browser
--auth	MESHCHAT_AUTH	false	Enable basic auth
--storage-dir	MESHCHAT_STORAGE_DIR	./storage	Data directory
--public-dir	MESHCHAT_PUBLIC_DIR	-	Frontend files path

Development

We use Task for automation.

Task	Description
task install	Install all dependencies
task run	Run the application
task lint	Run all linters (Python & Frontend)
task format	Format all code (Python & Frontend)
task test	Run all tests
task test:cov	Run tests with coverage reports
task build	Build frontend and backend

Credits

• Liam Cottle - Original Reticulum MeshChat
• RFnexus - micron-parser-js
